(Solar Charge Controller) :This solar panel controller Automatically detects 12V or 24V
DC system voltages.Discharge
Current:10/20/30A; USB Output Voltage: 5V/ 2.5A. 3-Stage(Bulk, ABS, Float) charge management and 4- Stage PWM charge.
[Various Uses) :Our solar Panel Battery
Controller is suitable for solar power generation system, solar street lamp, smart home, solar light box, intelligent irrigation, camping lamp, etc. Wide range of uses, no matter what occasions can play a huge role.
[Multiple Electric Protection) : Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices.
[Industrial HD Display) : Oversized LCD screen and multiple LED indicators display the solar charging and battery operation information, charge and discharge current display; cumulative power generation, discharge query; temperature display; Light control + delay control; adjustable charge and discharge parameters; with power-off memory and other functions.
[Meticulous Service) : We upholds the concept of customer first, whether it is before or after purchase, we can answer your questions at any time. (Please note that when using the controller, you must first connect the battery and then connect the solar panel, otherwise there will be problems such as identification errors, and the error can be solved by installing the correct steps to connect.)
POWLSOJX Dual USB LCD Display Solar Charge Controller 12V 24V Solar Panel.
Battery Controller Charger Regulator with Power-off Memory Function
Feature:
- Adopt industrial-grade main control chip.
- Large-screen LCD display; display of charging and discharging current; query of accumulated power generation and discharge; temperature display; light control+ delay control; adjustable charging and discharging parameters; with functions such as power-off memory.
- Dual USB output, maximum current up to
2.5A, support for iPhone charging.
4. Complete 3-stage charging management
5. Built-in over-current, short-circuit protection, open-circuit protection, reverse connection protection, all of which are self-healing and do not damage the controller.
- Anti-backflow circuit, ultra-low heat generation
Specification:
Material: ABS + PC
System voltage: 12V24V automatic adaptation
Rated charging current: 30A
Maximum photovoltaic voltage: 23V for 12V battery; 46V for 24V battery
Boost charging voltage: 14.4V
Floating voltage: 13.7V (default value, adjustable)
Discharge cut-off voltage: 10.7V (default value, adjustable)
Discharge recovery voltage: 126V (default value, adjustable)
Charging recovery voltage: 13V
Light-controlled turn-on threshold
Photovoltaic panel: 8V (light-controlled turn-on has a delay)
USB output: 2 USB outputs, 5V/2.5A (maximum)
Standby current: <10mA
Working temperature: -35-+60°C

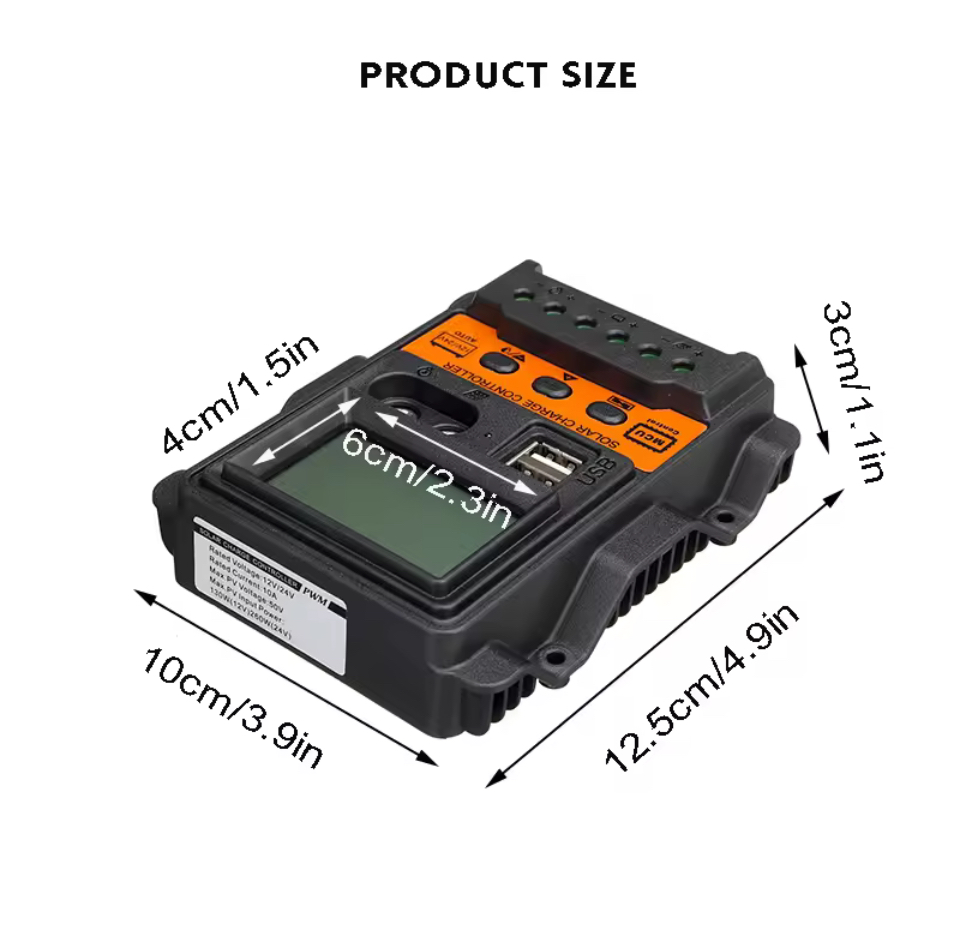

Size: 125x112x34mm/4.92x4.41x1.34in
Recommendations for safe use:
Please note that when using the controller, you must first connect the battery and then connect the solar panel, otherwise there will be problems such as identification errors, and the error can be solved by installing the correct steps to connect.
1. This controller automatically recognizes
12V24V. When installing for the first time, please make sure that the battery has enough voltage so that the controller can recognize the correct battery type.
2. Install the controller as close to the battery as possible to avoid voltage drop caused by excessively long wires and affect normal voltage judgment.
- This controller is only suitable for all kinds of lead-acid batteries (including openings, seals, gels, etc.).
- This controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source.
- The controller will heat up when it is running, please pay attention to install the controller on a flat, well-ventilated surface.
Packages:
1 X Solar Controller
