Description Model: DSP-100M Material: Monocrystalline silicon Maximum power (Pmax): 100 W Maximum voltage (Vmp): 18.00 V Maximum current (Imp): 5.56 A Module efficiency: 21.8%
Short-circuit current (Isc): 6.5 A Nominal operating cell temperature (NOCT): -45 to 80°C
Maximum system voltage: 1000 V DC Maximum series fuse: 15 A Dimensions: 97 x 56.5 x 2.5 cm

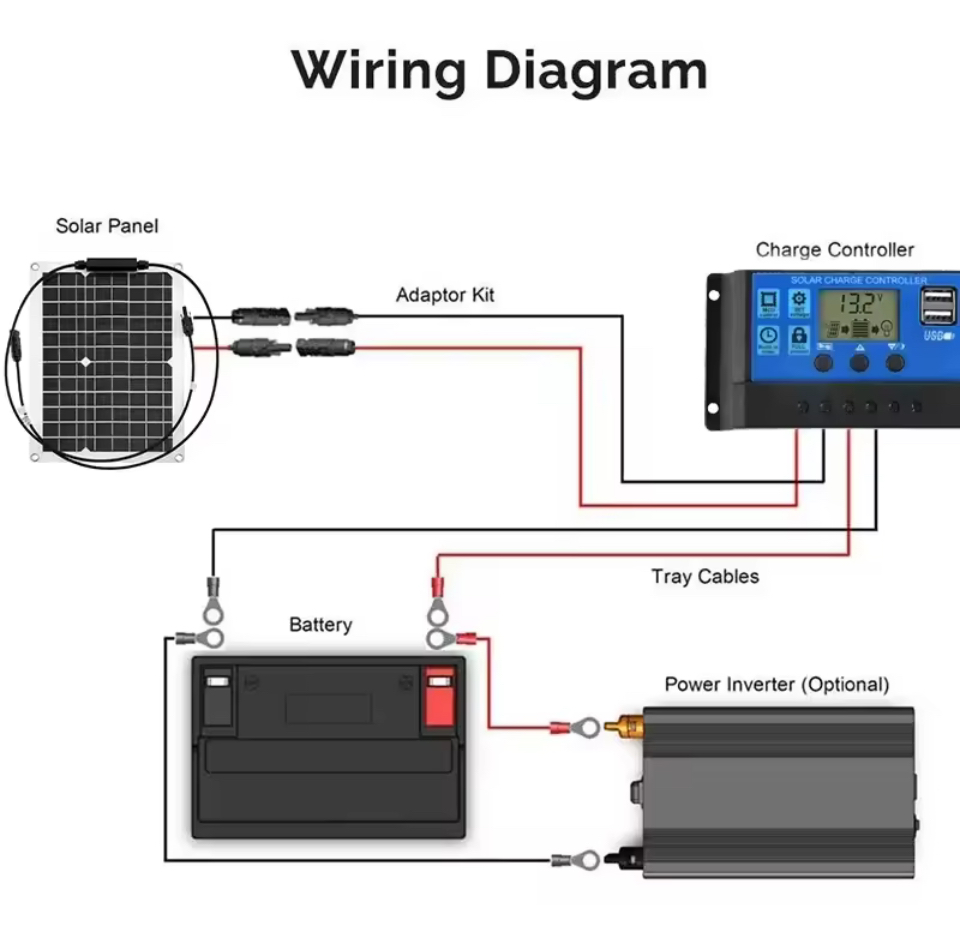

For field connections, use minimum 12 AWG copper wires insulated to a minimum of 90°C.
